Large Scale Production/Purification of IgA: Methods and Considerations, Antibody Engineering

Luke McLaughlin, Biotech Digital Marketer, Business Developer and Life Science Content Creator

Immunoglobulin A (IgA) plays a crucial role in the immune function of mucous membranes. It is the most abundant immunoglobulin in mucosal areas but is less prominent in the bloodstream compared to IgG. Due to its importance in immune defence, particularly in pharmaceutical and clinical research, large-scale purification of IgA has garnered significant attention. This article will explore the various methods used for the large-scale purification of IgA, discussing their mechanisms, advantages, limitations, and applications.

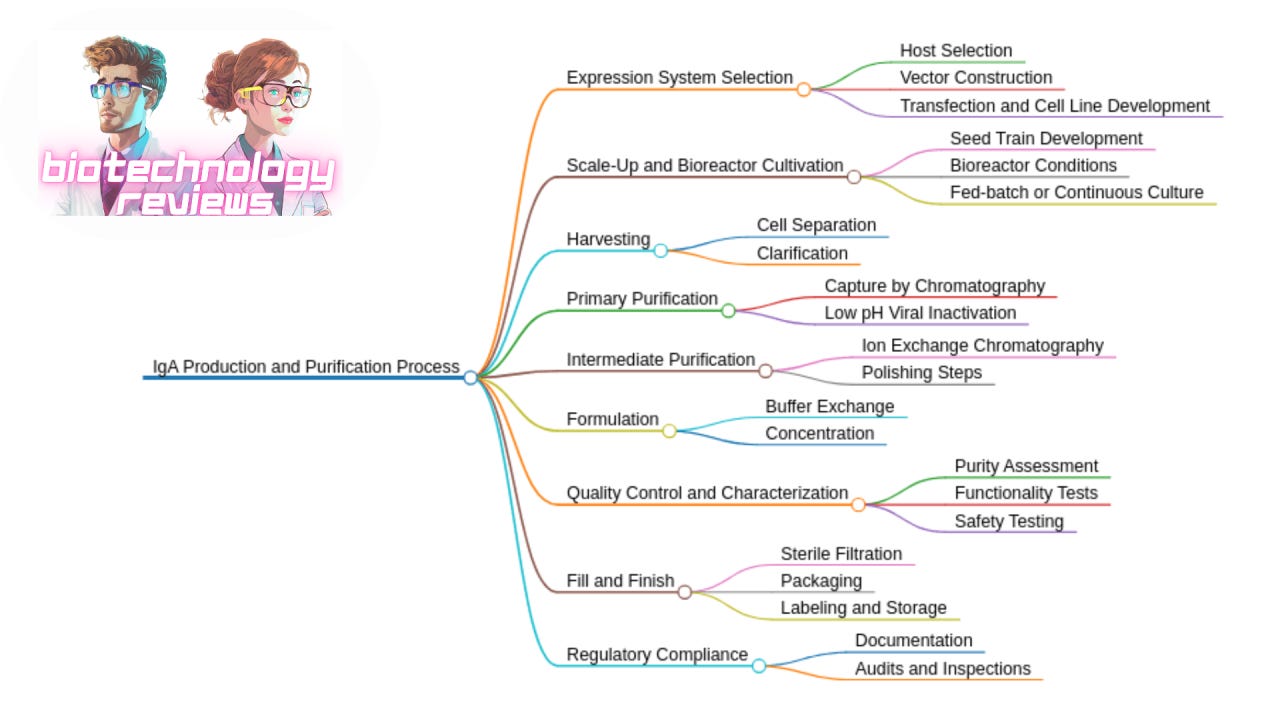

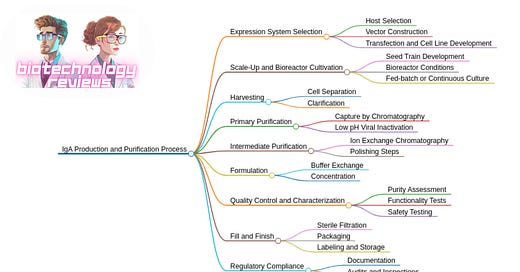

1. Overview of Immunoglobulin A (IgA)

Before delving into purification methods, it is important to understand the structure and function of IgA. IgA is primarily found in two forms: Serum IgA (monomeric form) and Secretory IgA (dimeric form bound to a secretory component). It is crucial in immune defence against pathogens at mucosal surfaces.

· Expression System Selection

Host Selection

Vector Construction

Transfection and Cell Line Development

· Scale-Up and Bioreactor Cultivation

Seed Train Development

Bioreactor Conditions

Fed-batch or Continuous Culture

· Harvesting

Cell Separation

Clarification

· Primary Purification

Capture by Chromatography

Low pH Viral Inactivation

· Intermediate Purification

Ion Exchange Chromatography

Polishing Steps

· Formulation

Buffer Exchange

Concentration

· Quality Control and Characterization

Purity Assessment

Functionality Tests

Safety Testing

· Fill and Finish

Sterile Filtration

Packaging

Labeling and Storage

· Regulatory Compliance

Documentation

Audits and Inspections

Host Selection

Choose a host system for IgA production. Commonly used systems include mammalian cells (e.g., Chinese Hamster Ovary [CHO] cells), yeast, or transgenic animals. Mammalian systems are preferred due to their ability to perform post-translational modifications similar to those in humans.

Host Cell Line Characteristics: The choice of host cell can significantly influence the expression, assembly, and glycosylation of IgA. Common host cells for antibody production include Chinese Hamster Ovary (CHO) cells, human embryonic kidney (HEK) cells, and yeast cells. Each has distinct advantages and challenges related to productivity, post-translational modifications, and scalability.

Productivity and Stability: It's essential to select a host that not only produces high yields of IgA but also maintains genetic stability over time to ensure consistent product quality and functionality.

Glycosylation Profile: Since glycosylation can affect the stability, efficacy, and safety of IgA, the host's glycosylation pathways must be considered. Mammalian cells typically provide human-like glycosylation patterns, which are preferable for therapeutic applications due to reduced immunogenicity.

Secretion Efficiency: The ability of the host cell to efficiently secrete IgA into the culture medium can simplify the downstream purification process and improve overall yield.

Scalability: The chosen host should be amenable to scaling up, meaning it should perform consistently as production transitions from lab scale to industrial scale. This includes maintaining cell health and productivity in large bioreactors.

Regulatory and Safety Considerations: The host cell line must meet regulatory requirements for therapeutic antibody production, including safety profiles regarding viral inclusions and mutagenic potential.

Cost-effectiveness: Economic factors also play a significant role in host selection. This includes not only the costs associated with cell culture and downstream processing but also the development time and resources needed to create stable cell lines.

Engineering Capabilities: Some hosts might require genetic modifications to optimize IgA production, such as the insertion of specific promoters or adaptation to serum-free media. The ease with which these modifications can be made is a critical factor.

Vector Construction

Construct expression vectors incorporating the IgA heavy and light chain genes. Include regulatory elements such as promoters, enhancers, and selection markers.

Optimizing vector construction for the production of Immunoglobulin A (IgA) is crucial for ensuring efficient gene expression, stable protein production, and functional antibody assembly. Here are the key points to consider:

Promoter Selection: Choosing the right promoter that ensures high and stable expression of IgA in the selected host cell is critical. Promoters can be constitutive or inducible, and their effectiveness can vary significantly between different cell types.

Gene Insert Design: The design of the gene insert must ensure correct transcription and translation. This includes optimizing the codon usage to match the host cell's preferences, which can significantly enhance protein expression.

Inclusion of Enhancer Sequences: Enhancers can be included in the vector to increase the transcription level of IgA genes. These sequences help in up-regulating gene expression specific to the host cell system.

Signal Peptide: For efficient secretion of IgA, the vector should include a signal peptide sequence appropriate for the chosen host cell. This sequence guides the nascent protein to the cell’s secretory pathway.

Multigene Expression Systems: Since IgA is a dimeric molecule composed of two alpha chains and two J-chains, the vector may need to be designed to co-express these multiple chains in the correct stoichiometry. This can involve using internal ribosome entry sites (IRES), 2A peptides, or multiple promoter systems.

Stability Elements: Incorporating elements such as insulators, matrix attachment regions (MARs), or scaffold/matrix attachment regions (S/MARs) can enhance the stability of the expression cassette and prevent silencing in the host genome.

Selectable Markers: Selectable marker genes are essential for identifying and maintaining cells that have successfully integrated the IgA expression construct. Antibiotic resistance genes are commonly used, but other markers such as metabolic enzymes can also be employed, especially in systems where antibiotic resistance is undesirable.

Scalability and Clonality: The vector should be designed to facilitate easy scaling and clonal selection. This includes considerations for how the vector can be introduced into host cells at high efficiencies and how clones can be isolated and expanded under industrial conditions.

Safety and Regulatory Compliance: The vector should be constructed with elements that are safe and acceptable for therapeutic production. This includes avoiding the use of sequences that can potentially lead to recombinant protein mishaps or are derived from pathogens.

Optimization for Post-Translational Modifications: Depending on the host, vectors may need elements that optimize the post-translational modification pathways specific to IgA, such as glycosylation. This could involve modifying glycosylation sites or overexpressing certain enzymes in the glycosylation pathway.

Transfection and Cell Line Development

Transfect the host cells with the vector. Select and clone the high-producing cells. This may involve single-cell cloning and screening for high-expression clones.

Optimizing transfection and cell line development for the production of Immunoglobulin A (IgA) is essential for achieving high-yield and stable production of this important antibody. Here are the key points to consider:

Transfection Method: The choice of transfection method (e.g., lipofection, electroporation, viral transduction) affects the efficiency of gene delivery and can vary significantly between different cell types. The method must be optimized for high transfection efficiency and minimal cytotoxicity in the chosen host cell line.

Vector Design: As mentioned earlier, the vector should be designed specifically for the host cell to ensure optimal expression of IgA. This includes appropriate regulatory elements, strong promoters, and sequences that enhance mRNA stability and translation.

Selection of Stable Clones: After transfection, selecting and isolating stable cell clones that produce high levels of IgA is crucial. This usually involves using selectable markers in the vector, such as antibiotic resistance genes, and screening for high-producing clones through techniques like ELISA or flow cytometry.

Single Cell Cloning: Ensuring monoclonality (originating from a single cell) of the production cell line is a critical requirement for therapeutic antibody production. Techniques like limiting dilution or cell sorting can be used for single-cell cloning to ensure the uniformity and consistency of antibody production.

Scalability and Adaptability: The cell line should be adaptable to growth in suspension culture and scalable for large-scale production in bioreactors. This may require further adaptation steps, such as selecting for clones that grow well in serum-free or chemically defined media.

Genetic Stability: Maintaining genetic stability over multiple passages and during scale-up is essential for consistent production. Strategies might include integrating the IgA expression cassette into specific genomic loci known for stable expression.

Product Quality Control: Throughout the cell line development, it is important to continually assess the quality of the IgA produced, including its structural integrity, glycosylation patterns, and functionality. This ensures the therapeutic efficacy and safety of the final product.

Regulatory Considerations: The developed cell line must comply with regulatory guidelines for therapeutic antibody production, including documentation of the cell line's origin, genetic modifications, and absence of adventitious agents.

Optimization of Culture Conditions: Optimizing the growth conditions, such as the composition of the growth medium, temperature, and CO2 levels, can enhance the expression of IgA and the overall productivity of the cell line.

Post-Transfection Gene Amplification: If using mammalian cells like CHO, gene amplification techniques (e.g., using methotrexate to increase copy number of genes next to a dihydrofolate reductase gene) can be employed post-transfection to enhance the expression levels of IgA.

Scale-Up and Bioreactor Cultivation

· Seed Train Development: Develop a seed train where cells are gradually scaled up from flasks to larger bioreactors.

· Bioreactor Conditions: Transfer the high-producing clones to a bioreactor. Optimize conditions such as pH, temperature, oxygen, and nutrient supply to maximize IgA production.

· Fed-batch or Continuous Culture: Implement a fed-batch or continuous culture strategy to sustain cell growth and productivity over time.

Optimizing scale-up and bioreactor cultivation for the production of Immunoglobulin A (IgA) involves addressing several critical parameters to ensure that the transition from laboratory scale to industrial scale is successful and efficient. Here are key points to consider:

Bioreactor Design and Type: Selecting the right type of bioreactor (e.g., stirred tank, wave bioreactor, single-use bioreactor) that suits the specific needs of the IgA-producing cell line is essential. The bioreactor design impacts mixing, oxygen transfer, and scalability.

Process Scale-Up: Scaling up from a lab-scale culture to a pilot or production scale must be methodical to maintain cell health and product quality. This involves linear scaling of parameters such as agitation speed, oxygen supply, and nutrient feeding strategies to match increased culture volumes.

Control of Environmental Conditions: Precise control of pH, temperature, dissolved oxygen, and CO2 levels is crucial for optimal cell growth and IgA production. These parameters must be tightly regulated and monitored continuously.

Media Optimization: The composition of the growth media plays a critical role in the productivity and quality of IgA. Media optimization might involve adjusting concentrations of amino acids, vitamins, and growth factors, and transitioning to serum-free or chemically defined media for better control and consistency.

Feeding Strategies: Optimizing nutrient feed and waste removal strategies is crucial to prevent nutrient depletion and toxic metabolite accumulation. Fed-batch, perfusion, or continuous culture systems can be utilized depending on the cell line and product characteristics.

Aeration and Agitation: Adequate aeration and efficient mixing are essential for maintaining uniform cell growth and metabolite distribution in the bioreactor. However, care must be taken to avoid shear stress, which can damage cells and reduce antibody production.

Monitoring and Analytics: Real-time monitoring of bioprocess parameters and in-process analytics helps in making informed decisions to adjust process conditions. This can include online sensors for pH, oxygen, and other critical parameters, as well as sampling for offline analysis of cell density, viability, and product concentration.

Harvesting Strategy: The method and timing of harvest can impact the quality and yield of IgA. Strategies need to be developed for efficient separation of IgA from cells and cell debris, possibly involving centrifugation or filtration techniques.

Scale-Down Models: Developing scale-down models that accurately reflect the production-scale system is important for troubleshooting, process improvement, and validation activities without the expense and resource demands of full-scale runs.

Regulatory Compliance: Ensuring that the scale-up and bioreactor processes meet regulatory requirements for cGMP (current Good Manufacturing Practices) is critical, especially concerning documentation, validation, and quality control.

Quality by Design (QbD): Implementing QbD approaches can help in understanding the process parameters and their impact on IgA quality, leading to more robust and reproducible manufacturing processes.

Harvesting

· Cell Separation: Once peak production is achieved, separate the cells from the culture medium using centrifugation or microfiltration.

· Clarification: Clarify the supernatant containing IgA using depth filtration to remove any residual cells and debris.

Optimizing the harvesting process for the production of Immunoglobulin A (IgA) is crucial to ensure high yield, purity, and functionality of the final product. Here are key points to consider for effective harvesting:

Determination of Harvest Timing: Monitoring the cell culture to determine the optimal time for harvest is essential. This involves assessing cell viability, growth rate, and IgA concentration in the culture medium. Harvesting too early or too late can affect both yield and quality.

Centrifugation: A common initial step in harvesting IgA involves centrifugation to separate cells and cell debris from the supernatant containing IgA. Parameters such as centrifuge speed and time need to be optimized to maximize recovery while preventing shear stress that could damage the product.

Microfiltration and Depth Filtration: These filtration techniques are used to further clarify the supernatant by removing any remaining cell debris and other particulates. The choice of filter size and type, as well as flow rates, must be optimized for efficient processing.

Product Stability: It’s important to maintain conditions that preserve the stability of IgA during harvesting. This includes controlling temperature, pH, and avoiding prolonged exposure to light or oxidative conditions.

Use of Protease Inhibitors: Adding protease inhibitors during the harvesting process can help prevent degradation of IgA by proteases released from cells, enhancing the yield and quality of the harvested product.

Scaling Up Harvesting Processes: The harvesting process must be scalable while maintaining efficiency and product quality. This requires careful planning to ensure that the process developed at the laboratory scale can be effectively transferred to pilot and production scales.

Integration with Downstream Processing: The harvesting process should be designed with an eye towards the downstream purification steps. Conditions such as pH and conductivity might need to be adjusted to align with subsequent purification stages, such as chromatography.

Automation and Process Control: Automation of the harvesting process can enhance reproducibility, reduce labor costs, and minimize contamination risks. Implementing robust process control systems can help in monitoring critical parameters and making real-time adjustments.

Recovery Efficiency: Maximizing the recovery of IgA from the culture medium is critical for process efficiency. Techniques like tangential flow filtration (TFF) can be optimized for higher recovery rates.

Regulatory Compliance: Ensure that the harvesting process complies with regulatory guidelines for cGMP manufacturing, particularly in terms of process validation and control, equipment cleanliness, and contamination prevention.

Primary Purification

· Capture by Chromatography: Use affinity chromatography (typically Protein A or Protein G) to capture IgA from the clarified supernatant. This step selectively binds IgA while other proteins are washed away.

· Low pH Viral Inactivation: Expose the bound IgA to a low pH buffer to inactivate potential viruses.

Optimizing the primary purification process for the production of Immunoglobulin A (IgA) is a crucial step in ensuring the purity, potency, and safety of the final therapeutic product. Here are the key points to consider:

Choice of Chromatography Techniques: The most common primary purification step for IgA involves chromatography techniques. Protein A affinity chromatography, while popular for IgG, is less effective for IgA due to lower binding affinity. Alternative methods such as ion-exchange chromatography or hydrophobic interaction chromatography are often employed.

Buffer Conditions: Optimizing buffer conditions (pH, ionic strength, and buffer composition) is crucial for maximizing the binding of IgA to the chromatography medium and for effective elution without affecting the antibody's integrity.

Column Loading: The amount of product loaded onto the chromatography column needs optimization to prevent column overloading, which can lead to reduced resolution and lower purity. This requires a balance between maximizing throughput and maintaining separation quality.

Flow Rate and Pressure: The flow rate through the column affects both resolution and processing time. Optimal flow rates must be determined to ensure efficient binding and elution, while avoiding high pressures that could damage the chromatography media.

Scale-Up Considerations: Parameters optimized at the lab scale need to be translated effectively to pilot and production scales. This scale-up must consider changes in column dimensions, flow dynamics, and system backpressure.

Temperature Control: Maintaining an optimal temperature during the chromatography process is essential to preserve the activity and stability of IgA. Temperature can affect the viscosity of solutions, binding interactions, and the overall kinetics of the purification process.

Use of Gradient Elution: Implementing gradient elution (gradually changing the buffer composition) can help in resolving closely related impurities and improving the purity of IgA.

Regeneration and Sanitization of Columns: Effective protocols for column regeneration and sanitization are required to maintain the performance of the purification system over multiple cycles. This includes removing any bound impurities and microbial contaminants.

Integration with Downstream Processing: The primary purification should be considered as part of an integrated purification strategy. Conditions optimized here should facilitate subsequent steps, such as further polishing and formulation.

Validation and Consistency: Each step of the primary purification process must be validated to ensure consistency, reproducibility, and compliance with regulatory standards. This includes validation of the removal of process-related impurities and contaminants.

Monitoring and Quality Control: Real-time monitoring and in-process quality control are essential to ensure the process remains within the defined parameters and that the product meets the required specifications at every step.

Recovery Efficiency: Maximizing the recovery of IgA during primary purification is crucial for the process's overall yield. Techniques and conditions must be optimized to minimize product loss.

Intermediate Purification

· Ion Exchange Chromatography: Use ion exchange chromatography to further purify IgA. This step can help remove impurities based on charge differences.

· Polishing Steps: Implement additional polishing steps such as hydrophobic interaction chromatography or size exclusion chromatography to achieve high purity.

Optimizing the intermediate purification process for Immunoglobulin A (IgA) focuses on enhancing the purity and quality of IgA, while reducing contaminants that might have passed through the primary purification steps. Here are the key points to consider for an effective intermediate purification process:

Secondary Chromatography Techniques: After the primary purification, additional chromatography steps are employed to further enhance purity. Techniques such as ion-exchange chromatography, hydrophobic interaction chromatography, or size-exclusion chromatography are commonly used based on their differing mechanisms to remove different types of impurities.

Optimization of Chromatography Conditions: Conditions such as pH, ionic strength, and buffer composition should be specifically tailored to target and remove remaining contaminants while preserving the integrity and activity of IgA. This might involve fine-tuning the elution conditions to separate IgA from closely related protein species or degraded forms.

Removal of Aggregates: Size-exclusion chromatography is particularly useful in removing aggregates that may have formed during earlier stages of the purification process. Removing these aggregates is crucial to ensure product safety and efficacy.

Product Yield and Recovery: Maximizing the recovery of IgA during intermediate purification steps is critical. Optimizing conditions to minimize product loss while maintaining high purity is a key goal.

Column Capacity and Throughput: The capacity of chromatography columns needs to be optimized to handle the expected volume of product from upstream processes efficiently, without compromising resolution and binding capacity.

Monitoring Impurity Levels: Specific assays and monitoring techniques should be in place to track the removal of process-related impurities, such as host cell proteins, DNA, and viruses, as well as product-related impurities like misfolded IgA or high molecular weight species.

Process Integration: The intermediate purification steps must be well-integrated with both upstream and downstream processes. This integration ensures a smooth transition and maintains consistent conditions that support the stability and activity of IgA.

Scalability: Similar to primary purification, intermediate steps must also be scalable from pilot to production scale, maintaining effectiveness and efficiency.

Regulatory Compliance and Validation: Every step of the intermediate purification must adhere to regulatory requirements for therapeutic antibody production. This includes validating the removal of all critical impurities to accepted levels and documenting each step thoroughly for regulatory review.

Use of Disposables: The use of disposable technologies, such as single-use chromatography columns or filters, can simplify scale-up and reduce cross-contamination risks, enhancing process robustness and safety.

Cost-Effectiveness: While optimizing for purity and yield, it's also important to consider the cost implications of the intermediate purification steps. Balancing cost with the benefits of enhanced purity is crucial for commercial viability.

Automation and Process Control: Automated systems can improve the consistency and reliability of the intermediate purification process, reducing human error and improving batch-to-batch reproducibility.

Formulation / QC / Fill and Finish

Buffer Exchange: Exchange the buffer to stabilize IgA in a formulation suitable for storage and use.

Concentration: Concentrate the IgA using ultrafiltration/diafiltration to achieve the desired concentration.

Quality Control and Characterization

Purity Assessment: Assess the purity of IgA using methods like SDS-PAGE, Western blotting, and HPLC.

Functionality Tests: Perform assays to confirm the functionality of IgA, such as antigen binding assays.

Safety Testing: Test for contaminants such as endotoxins, host cell proteins, and residual DNA.

Fill and Finish

Sterile Filtration: Filter the final formulation through a sterile filter to ensure it is free of microbial contamination.

Packaging: Fill the purified IgA into vials or other appropriate containers under aseptic conditions.

Labeling and Storage: Label the containers and store them at conditions that ensure stability (typically refrigerated).

Regulatory Compliance

Documentation: Prepare and review all documentation related to the production, purification, and testing of IgA to comply with regulatory requirements (e.g., FDA, EMA).

Audits and Inspections: Prepare for and participate in audits and inspections to ensure compliance with good manufacturing practices (GMP).

These steps collectively ensure the production of high-quality, safe, and effective IgA for therapeutic use. Each step must be meticulously optimized and controlled, as variations can significantly impact the final product's quality and efficacy.

Source Materials for IgA Purification

Cell cultures: Engineered cells that produce recombinant IgA.

Recombinant DNA technology has enabled the production of IgA through engineered cell lines. These cell cultures can be tailored to produce specific types of IgA, providing a consistent and controllable source of this immunoglobulin.

Advantages:

• Ability to produce specific variants of IgA.

• Scalable and controllable production.

Challenges:

• High initial setup and maintenance costs.

• Requires sophisticated technology and expertise.

Purification Techniques

The purification of IgA involves several techniques that can be used standalone or in combination depending on the source and desired purity.

Affinity Chromatography

Affinity chromatography is highly selective and widely used for IgA purification. It exploits the specific binding interactions between IgA and ligands such as protein A, protein G, or anti-IgA antibodies immobilized on a matrix. The process involves:

• Binding: IgA in the sample binds to the ligand.

• Washing: Removes non-specifically bound components.

• Elution: IgA is released from the ligand by changing pH or ionic strength.

This method is particularly effective for high purity but can be expensive due to the cost of affinity media.

Size Exclusion Chromatography (SEC)

Size exclusion chromatography, also known as gel filtration, separates proteins based on their size and shape. It is less commonly used as a primary purification step but is excellent for polishing purified IgA to remove aggregates and other size variants.

Ion Exchange Chromatography (IEC)

Ion exchange chromatography is effective for the purification of IgA from complex mixtures such as serum or cell culture supernatants. It separates proteins based on their charge differences at a specific pH. This method can be tailored to capture either positively or negatively charged contaminants or desired molecules.

Optimization and Scale-Up

Scaling up IgA purification requires careful consideration of process parameters to maintain efficiency and effectiveness. Critical factors include:

• Buffer composition: Optimizing pH and ionic strength to enhance binding and elution steps.

• Flow rates: Balancing between optimal interaction times and process throughput.

• Column dimensions: Scaling up the column size appropriately to handle larger volumes without compromising resolution.

Challenges in Large-Scale Purification

The primary challenges in scaling up IgA purification include:

• Cost: High-cost materials like affinity media.

• Product stability: Maintaining the integrity and functionality of IgA during processing.

• Regulatory compliance: Ensuring that the purification process meets stringent quality standards required for therapeutic applications.

Conclusion

The large-scale purification of IgA is a complex process that requires a deep understanding of both the biochemical properties of IgA and the technical aspects of purification techniques. Advances in chromatographic technologies and a better understanding of IgA's role in immunity will continue to drive improvements in the purification processes, enhancing yield, purity, and clinical efficacy.

This overview provides a comprehensive understanding of the current methodologies and considerations in the large-scale purification of IgA. Each section is designed to cater to the needs of professionals looking to optimize or scale-up their IgA purification protocols in pharmaceutical and biomedical research settings.
